Toyota Tacoma parts catalogs contain detailed diagrams that illustrate how individual vehicle components fit within larger mechanical assemblies. These illustrations help owners identify replacement parts that might otherwise prove difficult to distinguish through product names or descriptions.
However, understanding the symbols, reference numbers, and component arrangements requires some familiarity with how manufacturers organize their catalogs. Knowing how to read Tacoma parts diagrams allows vehicle owners to research repairs accurately and identify the specific components their trucks require.
Identify the Correct Tacoma Model
Before examining individual components, it’s essential to understand which Tacoma model the catalog represents. Toyota has introduced numerous mechanical changes throughout the truck’s production history, meaning illustrations from one model year won’t necessarily reflect another. Even vehicles within the same generation might have specialty features that you need to confirm.
Catalogs generally organize illustrations according to model year and vehicle configuration. A 2002 Tacoma may have engine components that differ substantially from those in a truck equipped with the 2.7-liter four-cylinder engine. Pay particular attention to these distinctions when researching mechanical assemblies.
Locate the Appropriate Component Category
Parts catalogs divide vehicles into categories according to their mechanical systems. Rather than displaying every component in one illustration, these categories help readers concentrate on the assembly associated with a particular repair.
The category name doesn’t always match the terminology vehicle owners use when describing a problem. For example, someone researching a leaking steering rack might encounter the component under a steering gear assembly rather than a general steering category. Understanding these distinctions helps identify the relevant illustration without confusing components that perform related functions.
Understand Exploded Parts Diagrams

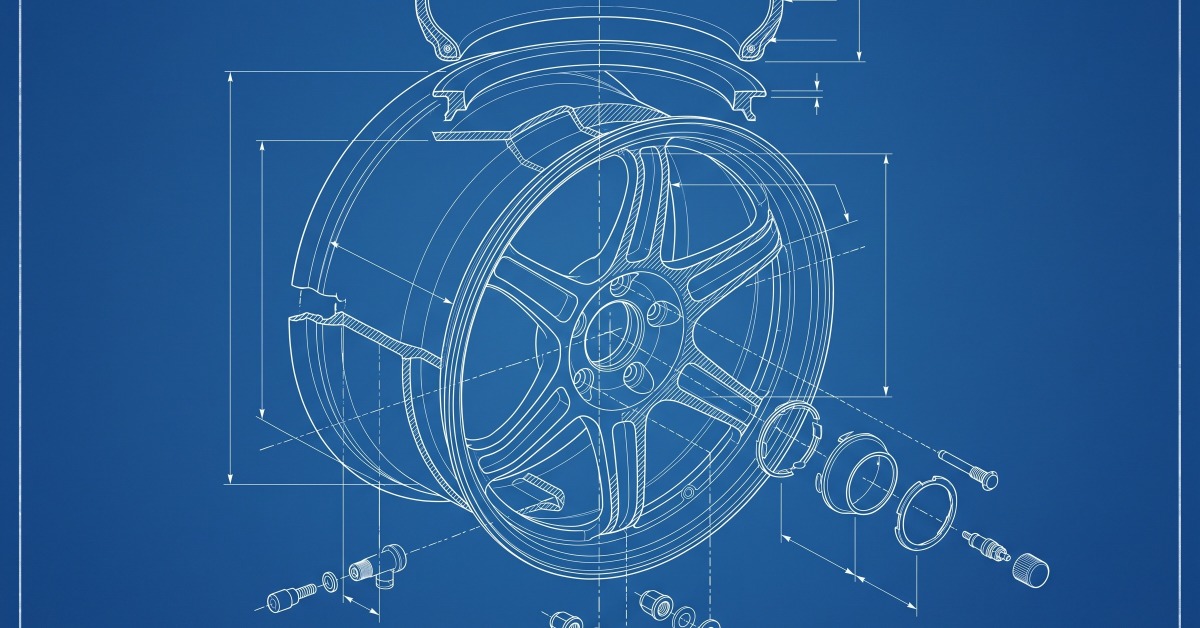

An exploded diagram illustrates an assembly by separating its individual components visually while preserving their general relationships. Although the drawing places some components apart from one another, their positions help readers understand how the complete assembly fits together. This representation proves particularly useful when examining mechanical systems that contain internal components.
Consider an illustration of a Tacoma water pump assembly. Depending on the catalog and engine configuration, the drawing might identify the pump housing alongside a gasket or related attachment hardware. The space between illustrated components doesn’t represent their actual installed distance. Instead, the diagram separates the pieces so readers can distinguish each component and recognize its relationship to the assembly.
Match Reference Numbers to Parts
Small numbers or alphanumeric labels appear next to components throughout a parts catalog illustration. Catalogs use these callouts to connect individual drawings with corresponding entries in a parts list. A line extending from the label generally identifies the exact component associated with that reference.
It’s essential to distinguish these reference labels from the manufacturer’s actual part numbers. A diagram might use a short callout to identify a particular bracket, but the accompanying catalog entry provides the specific Toyota part number. Some callouts correspond to multiple part entries because vehicle configurations or production changes affect the applicable component. Consequently, the illustration identifies the general item while the accompanying information establishes its exact identity.
Interpret Part Names and Descriptions
Manufacturer catalogs frequently use terminology that differs from the names vehicle owners encounter in ordinary conversations. A component commonly called a valve cover might appear under the formal designation cylinder head cover. Recognizing these naming conventions connects familiar components with their catalog descriptions.
Descriptions sometimes contain abbreviations that indicate component position or orientation. For instance, LH refers to the vehicle’s left side, and RH identifies the right side from the perspective of someone facing the direction of travel. The designation FR commonly means front, although abbreviations vary across catalog systems. Reading these details carefully prevents confusion when two components have similar appearances but belong on opposite sides of the vehicle.
Distinguish Assemblies From Individual Components
Some catalog entries refer to complete assemblies, whereas others identify individual pieces within those assemblies. Understanding this distinction prevents confusion about what a particular part number represents. A complete assembly may contain several components that appear separately in the illustration.
For example, a diagram might depict a thermostat housing alongside its gasket and attachment hardware. Although these pieces appear near one another, the catalog might assign separate part numbers to each component.
Likewise, an assembly listing doesn’t automatically indicate that every surrounding item comes with the replacement part. The corresponding description and product information establish whether the entry represents an individual component or a complete assembly.
Recognize Vehicle-Specific Fitment Notes
Parts diagrams sometimes accompany additional information that restricts a component to particular vehicle configurations. These notes are especially relevant to Tacomas because drivetrain arrangements and engine options affect mechanical components. An illustration might display a part that belongs to the correct model generation without establishing compatibility with every truck from that period.
Understand Production Date Restrictions
Manufacturers sometimes introduce component revisions within the same model year. Consequently, catalogs may identify an applicable production date range rather than relying exclusively on the vehicle’s advertised model year. A replacement component could correspond to trucks manufactured before a particular date, with another version applicable afterward.
Check Engine and Drivetrain Specifications
Engine displacement and drivetrain configuration frequently influence which components belong to a vehicle. For instance, a four-wheel-drive Tacoma has drivetrain components that a two-wheel-drive version doesn’t use. Reading the associated specifications ensures that a seemingly matching illustration corresponds to the truck’s mechanical configuration.
Verify the Manufacturer Part Number
After identifying a component through its diagram reference, the actual manufacturer part number becomes essential to researching a replacement. Toyota part numbers contain two groups of characters separated by a hyphen. These identifiers distinguish components that share similar names or appearances but have distinct specifications.
Occasionally, manufacturers replace an existing part number with a revised identifier through a process known as supersession. In these situations, the original catalog number might differ from the number associated with the currently available replacement. A supersession record helps establish the relationship between these identifiers, although compatibility still requires confirmation against the vehicle’s specifications.
Use the Vehicle Identification Number
A Tacoma’s vehicle identification number provides information that helps distinguish its configuration within the manufacturer’s catalog. VIN-based catalog searches identify components appropriate to a particular truck.
Because illustrations sometimes represent several configurations, verifying the part number against the VIN provides an additional means of checking compatibility. This is particularly valuable when researching components subject to production changes.
Use Catalog Information When Purchasing Parts
Learning how to read Tacoma parts catalog diagrams is the key to accurate repairs. Yota Shop offers a selection of Toyota Tacoma OEM parts for various model years and mechanical systems. Explore the available parts by vehicle year and review individual product descriptions to identify components that match the specifications established through your catalog research.
